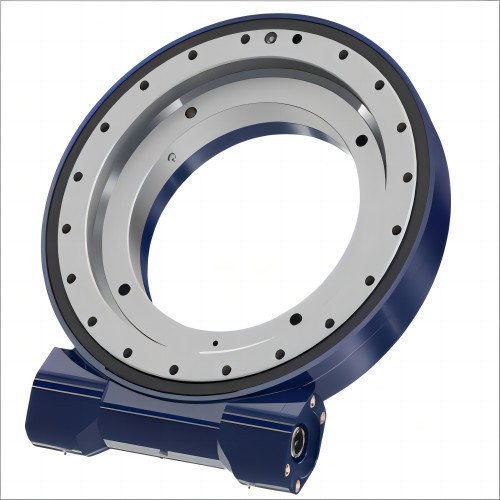

WEA Slew Drive

Slewing Drive Performance Parameter
Series	Rated Output Torque	Holding Torque	Axial Load Capacity	Radial Load Capacity	Tilting	Gear Ratio	BACKLASH	WEIGHT
					Moment
					Torque
WE7	3.5KN.m	20KN.m	220KN	90KN	14.2KN.m	47:01:00	≤0.2°	35kg
WE9	8KN.m	38.7KN.m	578KN	215KN	35.6KN.m	60:01:00	≤0.15°	50kg
WE12	9.36KN.m	42KN.m	760KN	280KN	56KN.m	78:01:00	≤0.15°	58kg
WE13	12.9KN.m	45KN.m	500KN	205KN	75.1KN.m	89:01:00	≤0.15°	82kg
WE14	11.475KN.m	48KN.m	950KN	360KN	73KN.m	85:01:00	≤0.15°	70kg
WE17	13.75KN.m	72.3KN.m	1160KN	435KN	143KN.m	103:01:00	≤0.1°	95kg
WE19	19.4KN.m	87KN.m	1800KN	675KN	196KN.m	99:01:00	≤0.1°	132kg
WE21	28.7KN.m	105.8KN.m	1590KN	640KN	203KN.m	90:01:00	≤0.1°	160kg
WE25	34.2KN.m	158.3KN.m	2360KN	945KN	310KN.m	104:01:00	≤0.1°	200kg
