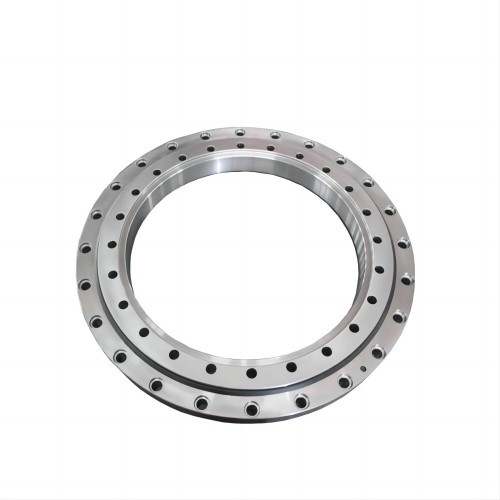

Kaydon XT series slewing ring bearing replacement

Introduction

XT Series slewing ring bearings are custom designs having a rectangular crosssection, and are available in sizes up to 218 inches OD (5500 mm). They are well suited for a wide range of applications where our standard product series do not meet your size, capacity, or weight requirements.

Design Features

The internal configuration consists of deep groove gothic arch raceways and maximum ball complement. This results in a four-point contact design which provides exceptional moment, thrust, and radial load capacities. Integral seals are provided to assist in the exclusion of contaminants. XT Series bearings are available in internal geared, external geared, and nongeared configurations.

XT Series bearings have been used successfully in a wide range of applications, including:

❚ Cranes ❚ Aerial lifts ❚ Excavators ❚ Wind turbines ❚ Utility derricks ❚ Log loaders and feller bunchers ❚ Grapples ❚ Mining equipment

Model reference:

12740001
12750001
12770001
12775001
12780001
12785001
12790001
16289001
16389001
16290001
16291001
16292001
16293001
16294001
16295001
16296001
16390001
16374001
16297001
16298001
16299001
16300001
16301001
16302001
16303001
16304001
16305001
16306001
16307001
12440001
16308001
12288001
16309001
16310001
16311001
16312001
16313001
16314001
16315001
16316001
16317001
