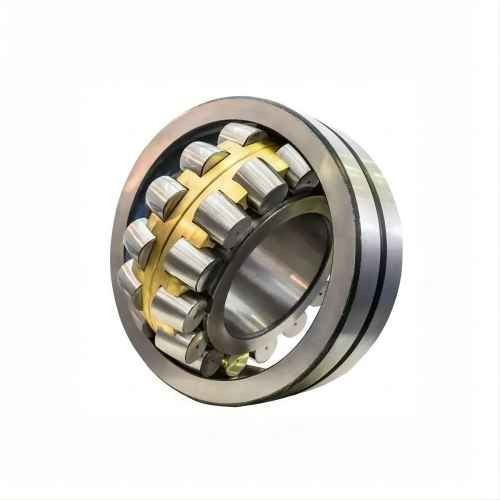

Spherical roller bearing24136,22236,23236,23938

1、Introduction

Spherical roller bearings are roller bearings with double rows of rollers. This bearing has a self-aligning structure and is suitable for working environments with heavy loads and impact loads. It has the advantages of high rigidity, high speed, and low noise. . The rollers are generally conical and can adapt to the special working environment of two-phase rolling.

In addition, the design of spherical roller bearings allows adjustment of the direction of two vertical axes, so they have better adaptability during installation and operation. It can withstand combined radial and axial loads, but radial load is the main source of bearing capacity.

The internal structure of spherical roller bearings helps these bearings adapt to various unstable factors, such as tilt. Its rollers can roll freely on the raceway and distribute the load evenly, helping to reduce friction and wear.

Generally speaking, spherical roller bearings are suitable for bearings in working environments with heavy loads and impact loads. They have the advantages of high rigidity, high speed, and low noise. When selecting a suitable spherical roller bearing, you need to consider the requirements of the specific application environment and working conditions, and select the appropriate size and material to ensure the service life and reliability of the bearing.

Mining applications:
Impact crusher, jaw crusher, hammer crusher, impact crusher, vibrating feeder, vibrating screen, conveyor and other various mineral processing, grinding, crushing, etc
Main bearing models: 23136CA MA MB, 23172CA MA MB, 22324CA MA MB, 22328CA, 22228CA, 22238CA, 23072CA, 23076CA, 22312EMA (vibrating screen bearing), 22315EMA, 22318EMA, 22319EMA, 22320EMA, 22322EMA, 22326EMA, etc

2. Full Process in Plant- China Spherical Roller Bearing Manufacturer

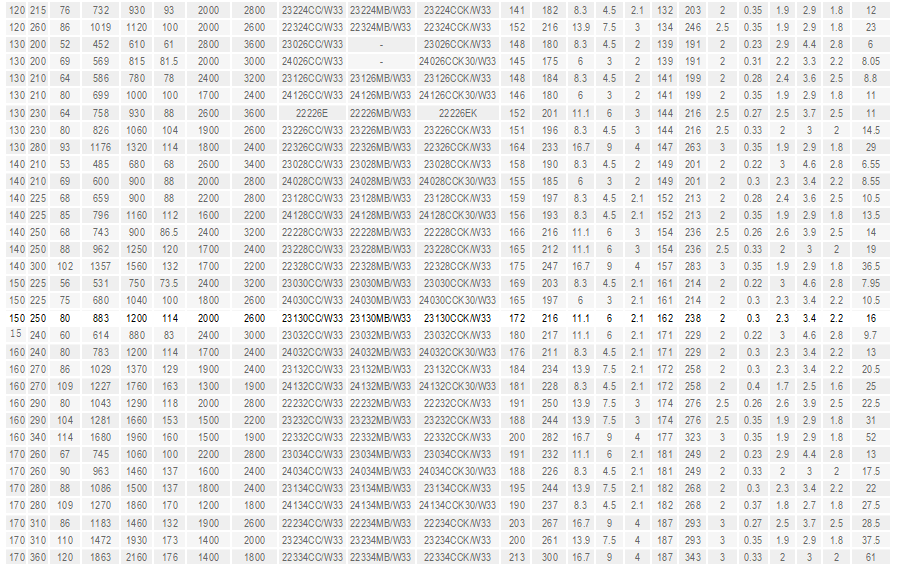

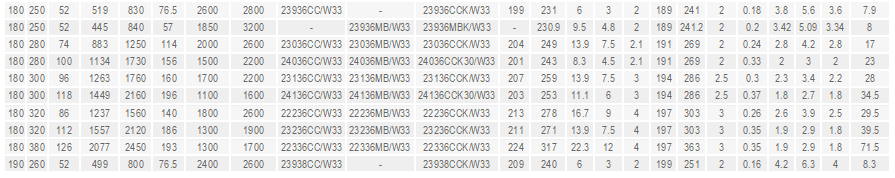

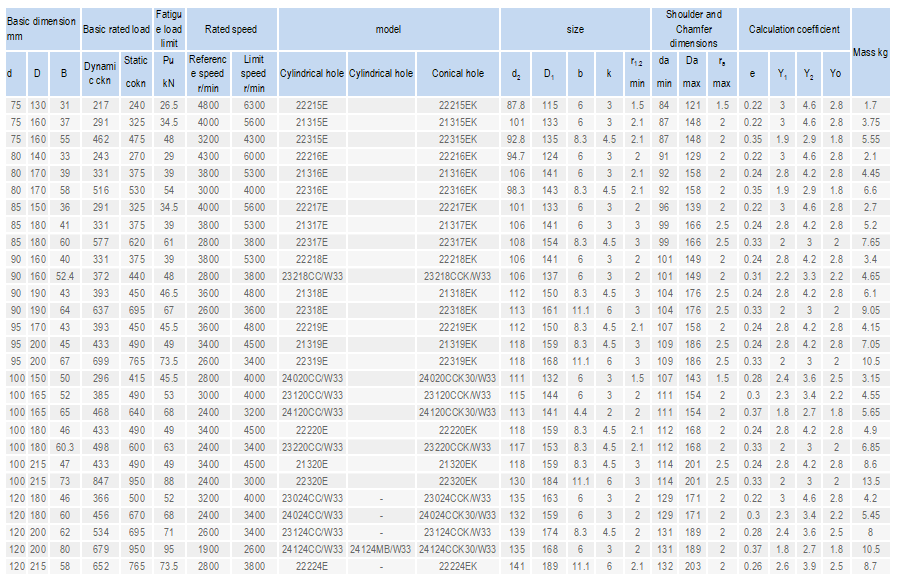

3.Dimension and Parameters
