Spherical roller bearing for cone crusher,jaw crusher,ball mill

1、Introduction

The spherical roller bearing has dual row rollers, with one shared spherical raceway on the outer ring and two raceways on the inner ring that are tilted at an angle relative to the bearing axis. This ingenious structure enables it to have automatic centering performance, making it less susceptible to errors or shaft bending caused by the angle between the shaft and the bearing housing. It is suitable for situations where installation errors or shaft bending cause angle errors. This bearing can not only withstand radial loads, but also axial loads acting in both directions.

Spherical roller bearing has two types of inner holes: cylindrical and conical, with conical taper of 1:30 and 1:12. This type of conical inner hole bearing is equipped with a locking sleeve or a detachable sleeve, which can easily and quickly assemble the conical inner hole centering ball bearing on the optical shaft or stepped machine shaft.

Mining applications:
Impact crusher, jaw crusher, hammer crusher, impact crusher, vibrating feeder, vibrating screen, conveyor and other various mineral processing, grinding, crushing, etc
Main bearing models: 23136CA MA MB, 23172CA MA MB, 22324CA MA MB, 22328CA, 22228CA, 22238CA, 23072CA, 23076CA, 22312EMA (vibrating screen bearing), 22315EMA, 22318EMA, 22319EMA, 22320EMA, 22322EMA, 22326EMA, etc

2. Full Process in Plant- China Spherical Roller Bearing Manufacturer

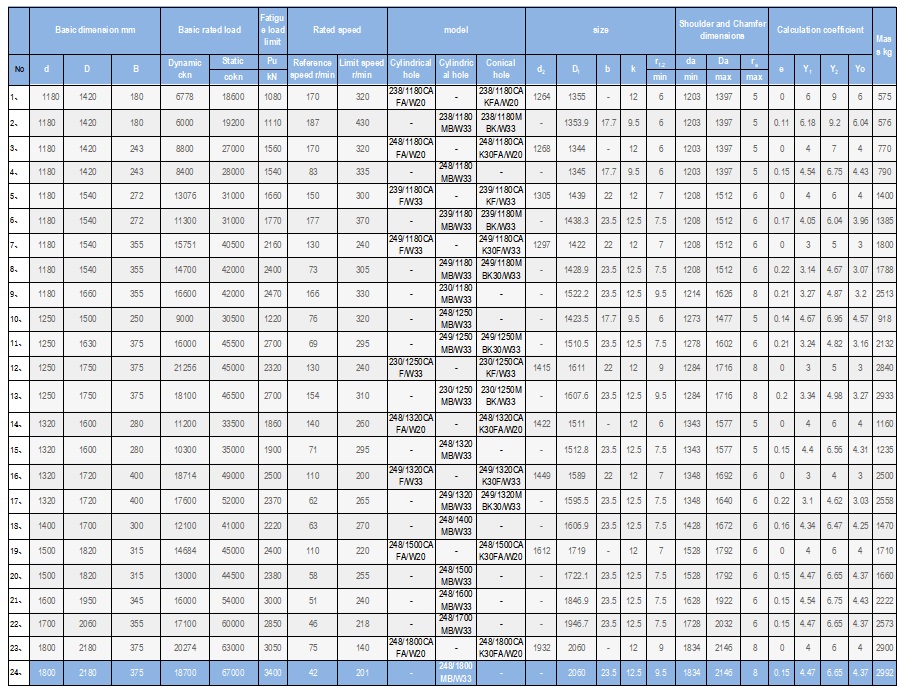

3.Dimension and Parameters
