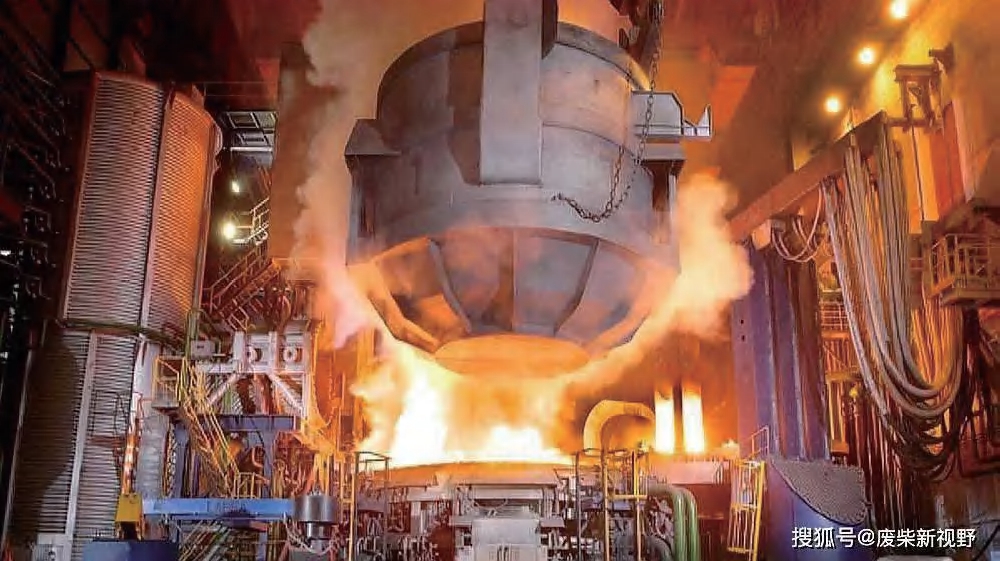

As the demand for product quality increases, metallurgical equipment requires bearings to withstand heavier loads and higher speeds, and thus requires higher performance. Steel companies place more emphasis on equipment normal operation time and performance.

We provide various bearing designs and configurations for steelmaking furnaces, continuous casting machine curved sections, work rolls, back-up rolls, press systems, mill drives, gearboxes, coilers, conveyor rollers and other auxiliary equipment.

The types of bearings include:

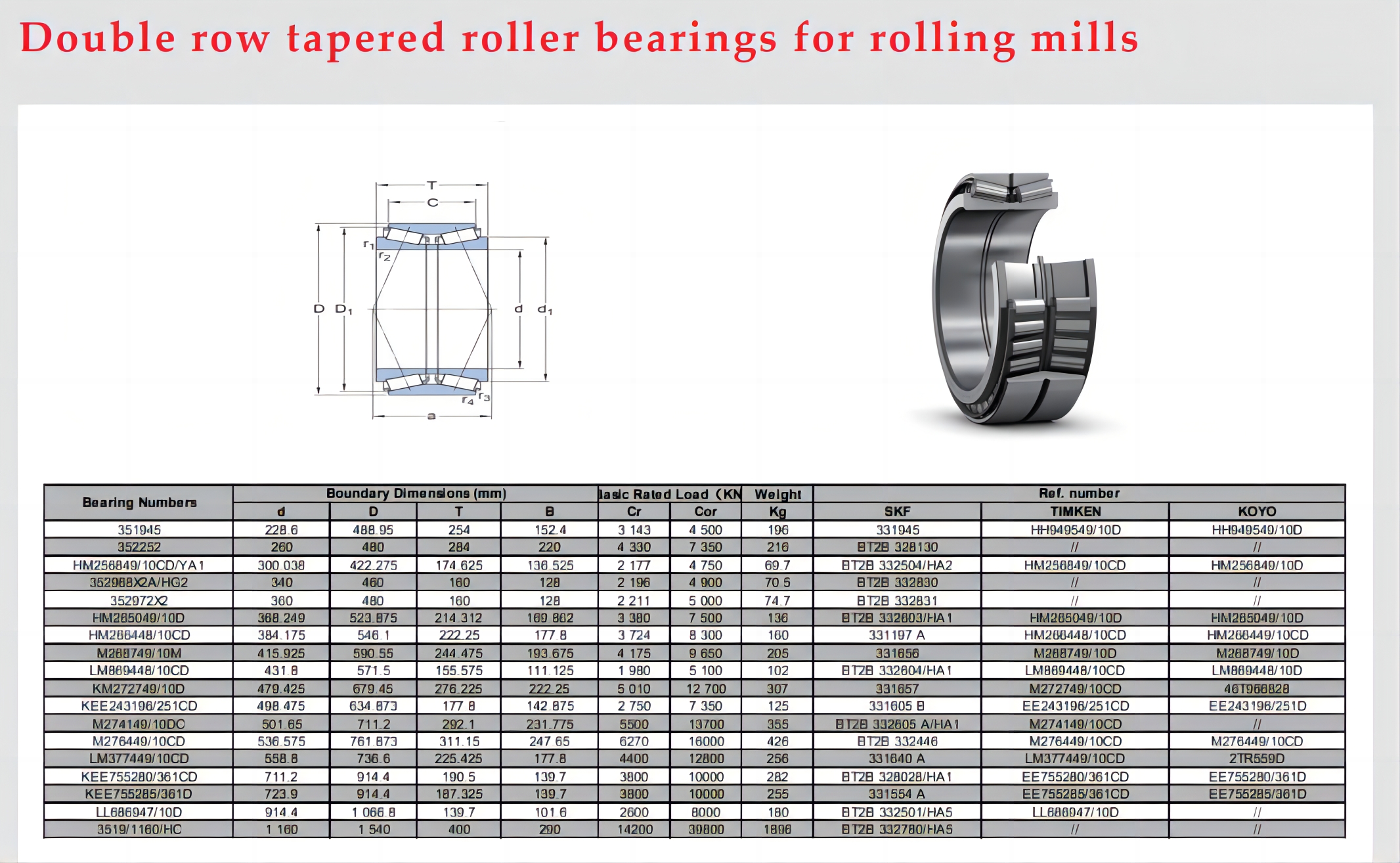

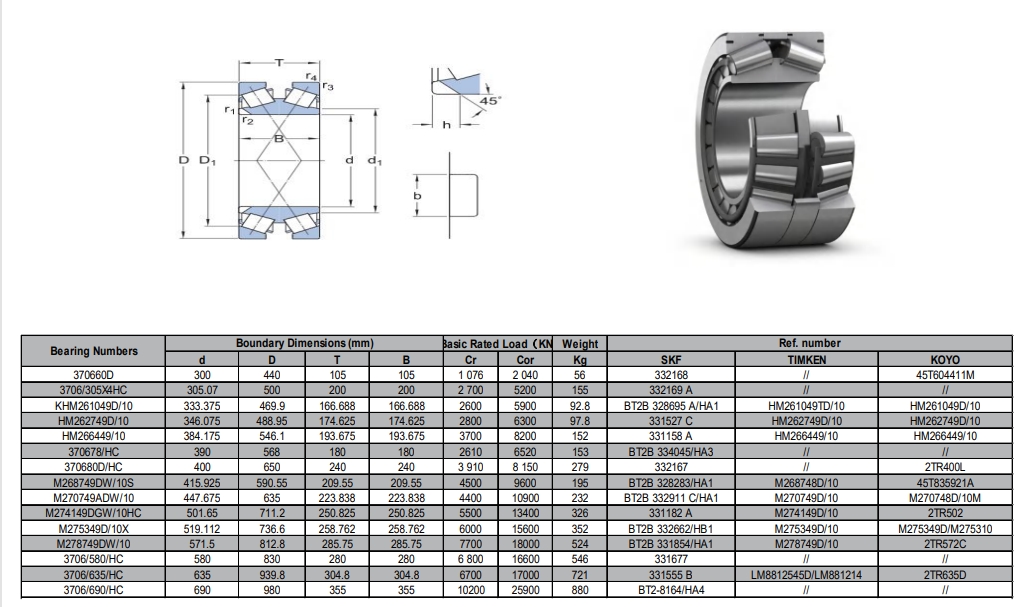

Tapered roller bearings use a unique design to withstand axial and radial loads and offer a wide range of assembly options through single and multiple row designs. Our complete range of tapered roller bearing combinations can provide equipment manufacturers and operators with simple, reliable, and high-quality design solutions.

Cylindrical roller bearings - Compared to other types of roller bearings, this design has the highest radial load capacity in the same size. Our extensive line of cylindrical roller bearings - including single row, double row, and multiple row can help extend equipment life and reduce maintenance costs. Single and double row cylindrical roller bearings are ideal choices for gear drives and other auxiliary equipment applications. The advanced design of four-row cylindrical roller bearings facilitates installation and provides high performance in demanding roll neck applications. Custom designs can also be provided as required for specific applications.

TYPE	Dimension (d*D*B)	Weight(KG)
313445	330*460*340	175
313822	280*390*220	82.5
313824	230*330*206	58
313893	200*280*200	39
313921	240*330*220	58
24024CCW33C4	120*180*60	5.45
24026CCW33C4	130*200*69	8.05
24028CCW33C4	140*210*69	8.55
24030CC/C4W33	150*225*75	10.5
24032CCW33C4	160*240*80	13
24122CC/C4W33	110*180*69	7.1
395KV5401	395*545*288.7	196
67885XDW-810-820D/P5	207*266.7*188.912	32.7
67986DW-67920-67921D	206.375*282.575*190.5	34.4
BT4-8160 E8/C475 (6-77968ХМ)	343.052*457.098*254	111
C4024V	120*180*60	5.5
C4026V	130*200*69	8.05
C4028V	140*210*69	8.55
C4030V	150*225*75	10.5
C4032V	160*240*80	12.6
FCDP76108300/HCP54	380*540*300	220
HM237545/HM237510CD/HCC9	177.8*288.925*142.875	32.44
HM256849/HM256810CD/HTCS	300.037*422.275*174.625	72.48
HM259049/HM259010/HTCS	317.5*447.675*85.275	41.94
LM 272249DGW/210-210D	482.6*615.95*330.2	235
LM451349DGW/LM451310/LM451310CD	266.7*355.6*228.6	64
LM451349DW/LM451310/LM451310CD	266.7*355.6*228.6	64
LM761649DGW/10/10D/HCP59	343.052*457.098*254	111
M 249730T/747TD/749T/710	234.422*358.775*292.1	95.1
M244249/M244210CD/HTCS	220.662*314.325*131.762	29.97
M249748DW/M249710/M249710D	254*358.775*269.875	85.6
M252349DW-M252310-M252310CD	269.875*381*282.575	110
M278749DW/M278710/HTC9	517.5*812.8*285.75	500
M281049DGW/M281010/M281010CD	635*901.7*654	1387
NP090602-9AK2 PSL612-348	500*720*418.5	568
NP222798/NP224992/NP226599/HT	480*700*418.5	568
NP246425-90KA1(381176)	380*620*418.5	515
NP747477/NP892981/HTP6	450*680*180	263
NP809306-NP809307	300*440*105	56
NP815821-90KA1(381084)	420*620*354.5	373.5
NP827555	530*880*542	1344
