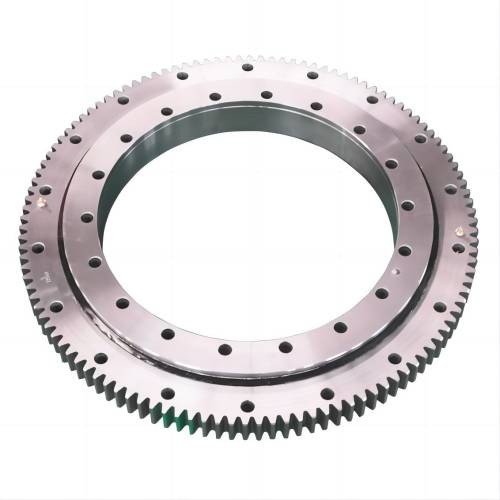

Kaydon KH replacement slewing ring bearing

Introduction

KH Series slewing ring bearings have a rectangular cross-section and range in size from 16 – 37 inches OD (400 – 950 mm). They provide precise positioning and repeatability in applications where rotation is constant, intermittent, or oscillating.

Design Features

The internal configuration is a deep-groove gothic arch raceway, which provides four points of contact with the balls, enabling it to carry radial, thrust, and moment loads individually or simultaneously. The use of internal diametral preload provides for greater stiffness, which combined with tightly controlled radial and axial runouts, delivers accurate repeatability. The axial runouts are 0.001 inch TIR and the radial runouts for locating diameters are 0.002 inch TIR. A separator is used to maintain consistent ball spacing interval, keep friction to a minimum, and minimize noise. Integral face riding seals are provided to assist in the exclusion of contaminants. KH Series bearings are offered in non-geared and externally geared configurations.

Applications

 KH Series bearings have been used successfully in applications demanding higher precision, including:

❚ Precision rotary index tables ❚ Radar antennas ❚ Satellite antennas ❚ Robots ❚ Medical equipment ❚ Machine tool tables

Model reference:

KH-125P
KH-166P
KH-225P
KH-275P
KH-325P
KH-125E
KH-166E
KH-225E
KH-275E
KH-325E
